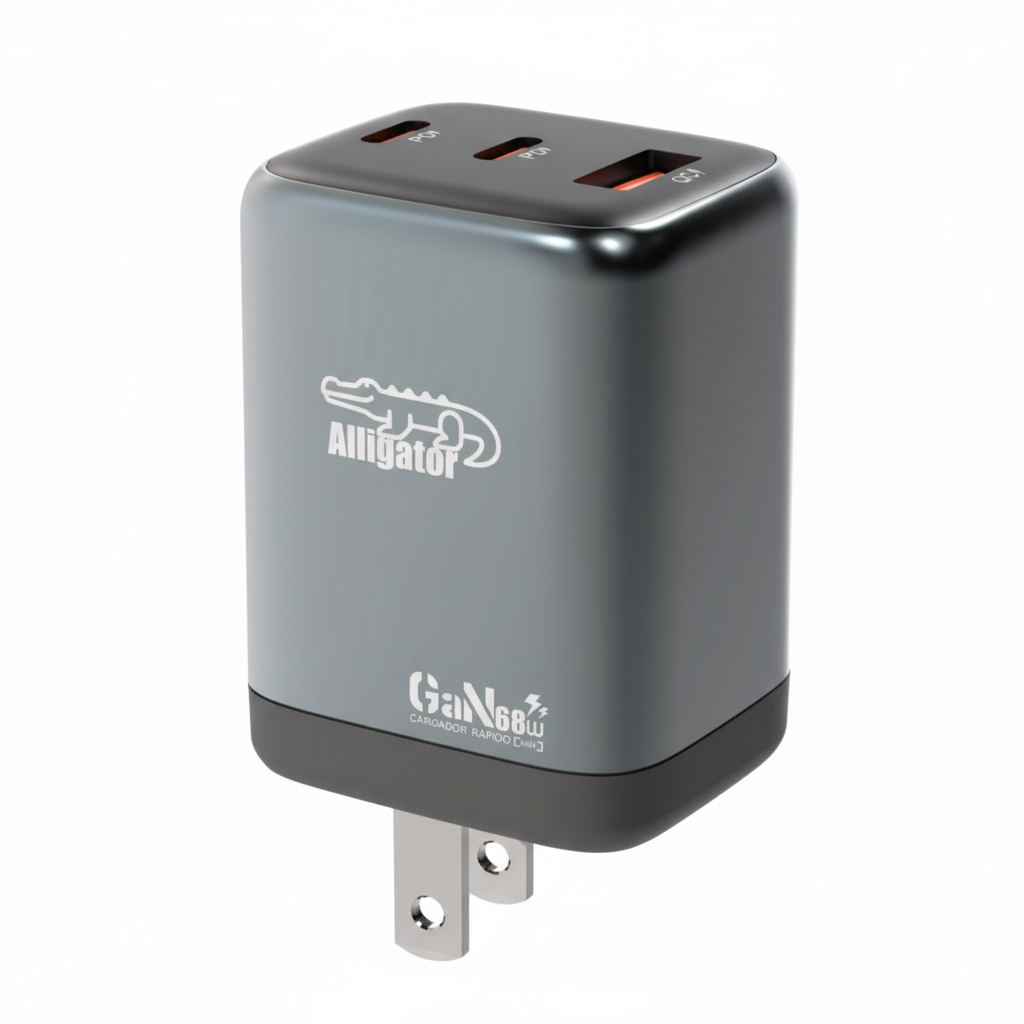

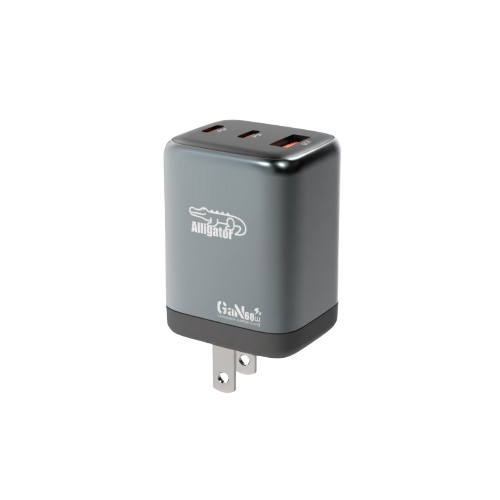

ALLIGATOR/68WH/DUAL PORT/C-TYPE/ADAPTER
This is a high-speed, multi-port charger that leverages GaN (Gallium Nitride) technology. GaN is a semiconductor material that allows chargers to be significantly smaller, lighter, and more energy-efficient than traditional silicon-based chargers, while delivering more power.
-
Gallium Nitride (GaN) Technology: The use of GaN makes the adapter incredibly compact (pocket-sized) despite its high 65W output, making it ideal for travel and reducing clutter.
-
Dual-Port Versatility: It features two ports to charge two devices simultaneously:
-
Intelligent Power Distribution: The charger uses a smart chip to dynamically balance the 65W output between the two ports, ensuring the fastest safe charge for each device.
-
Broad Compatibility: Supports all modern fast-charging protocols, including:
-
Power Delivery (PD) 3.0 (for laptops, MacBooks, iPads, iPhones).
-
PPS (Programmable Power Supply) (for Samsung Super Fast Charging 2.0).
-
Quick Charge (QC) 3.0/4.0+ (for various Android phones).
-
Safety Features: Equipped with multiple protections against over-current, over-voltage, short-circuit, and high temperatures.
Technical Specifications (Typical 68W Dual-Port GaN Adapter)
| Feature |
Specification |
| Model |
(Often a model like ALIGATOR GaN 65W) |
| Charger Type |
GaN (Gallium Nitride) Fast Charger |
| Total Max Power |
68W |
| Ports |
1x USB Type-C (PD), 1x USB Type-A (QC) |
| Input |
AC 100-240V, 50/60Hz (Worldwide Compatible) |
| Single-Port Output (USB-C) |
Max 68W (20V/3.25A, 15V/3A, 12V/3A, 9V/3A, 5V/3A) |
| Single-Port Output (USB-A) |
Max 30W (or 18W), typically up to 20V/1.5A |
| Simultaneous Output |
Split Power (Common Configurations): |
|
USB-C + USB-A: 45W (PD) + 18W (QC) (Total 63W) |
| Supported Protocols |
PD 3.0, PPS, QC 4.0+, QC 3.0, AFC, FCP, SCP |
| Best For |
Laptops (up to 65W), Tablets, and multiple Fast-Charging Smartphones. |
